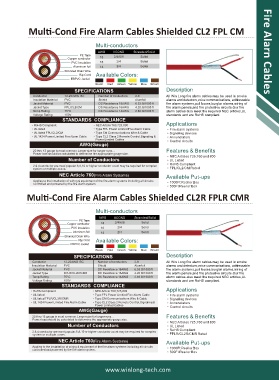

Page 3 - Fire Alarm Cables

Multi-Cond Fire Alarm Cables Shielded CL2 FPL CM

Multi-conductors
AWG #COND Stranded/Solid Fire Alarn Cables
PE Tape 2/4/6/8 Solid
Copper conductor 18
PVC Insulation 16 2/4 Solid
Aluminum foil 14 2/4 Solid
Stranded Drain Wire
Rip Cord Available Colors:
FRPVC Jacket
Black Red Green Yellow Blue Brown
SPECIFICATIONS Description
Conductor 12-22AWG BC Number of conductors 2-8 All Win Long fire alarm cables may be used in smoke
Insulation Material PVC Shield Alumfoil alarms and detectors,voice communications, addressable
Jacket Material PVC DC Resistance 18AWG 6.53 Ω/1000 ft fire alarm systems,pull boxes,burglar alarms,wiring of
Jacket Type FPL/CL2/CM DC Resistance 16AWG 4.20 Ω/1000 ft fire alarm panels,and fire protective circuits.Our fire
Temp Rating 75°C DC Resistance 14AWG 2.60 Ω/1000 ft alarm cables also meet the required NEC articles,UL
Voltage Rating 150V standards and are RoHS compliant.
STANDARDS COMPLIANCE
·RoHS Complianit ·NEC Article 760,725,800 Applications
·UL listed ·Type FPL Power Limited Five Alarm Cable ·Fire alarm systems
·UL listed FPL/CL2/CM ·Type CM Communications Wire & Cable ·Signaling devices
·UL 1424 Power Limited Fire Alarm Cable ·Type CL2 Class 2 Remote Control,Signaling & ·Annunciators
Power Limited Cables ·Control circuits
AWG(Gauge)
22 thru 12 gauge is most common.Larger size for longer runs... Features & Benefits
Power loss should be calculated to determine the appropriate gauge size. ·NEC Articles 725,760 and 800
Number of Conductors ·UL Listed
·RoHS Compliant
2 & 4 conductor are most popular.6,8,10 or higher conductor count may be required for complex
system or multiple zones. ·FPL/CL2/CM Rated
NEC Article 760(Fire Alarm Systems) Available Put-ups
Applies to the installation of wiring & equioment of the fire alarm systems including all circuits ·1000Ft Reel or Box
controlled and powered by the fire alarm system.
·500Ft Reel or Box
Multi-Cond Fire Alarm Cables Shielded CL2R FPLR CMR

Multi-conductors
AWG #COND Stranded/Solid
PE Tape
Copper conductor 18 2/4/6/8 Solid
PVC Insulation 16 2/4 Solid
Aluminum foil 14 2/4 Solid
Stranded Drain Wire
Rip Cord Available Colors:
FRPVC Jacket
Black Red Green Yellow Blue Brown
SPECIFICATIONS Description
Conductor 12-22AWG BC Number of conductors 2-8 All Win Long fire alarm cables may be used in smoke
Insulation Material PVC Shield Alumfoil alarms and detectors,voice communications, addressable
Jacket Material PVC DC Resistance 18AWG 6.53 Ω/1000 ft fire alarm systems,pull boxes,burglar alarms,wiring of
Jacket Type FPLR/CL2R/CMR DC Resistance 16AWG 4.20 Ω/1000 ft fire alarm panels,and fire protective circuits.Our fire
Temp Rating 75°C DC Resistance 14AWG 2.60 Ω/1000 ft alarm cables also meet the required NEC articles,UL
Voltage Rating 150V standards and are RoHS compliant.
STANDARDS COMPLIANCE
·RoHS Complianit ·NEC Article 760,725,800 Applications
·UL listed ·Type FPL Power Limited Five Alarm Cable ·Fire alarm systems
·UL listed FPLR/CL2R/CMR ·Type CM Communications Wire & Cable ·Signaling devices
·UL 1424 Power Limited Fire Alarm Cable ·Type CL2 Class 2 Remote Control,Signaling & ·Annunciators
Power Limited Cables ·Control circuits
AWG(Gauge)
22 thru 12 gauge is most common.Larger size for longer runs... Features & Benefits
Power loss should be calculated to determine the appropriate gauge size. ·NEC Articles 725,760 and 800
Number of Conductors ·UL Listed
·RoHS Compliant
2 & 4 conductor are most popular.6,8,10 or higher conductor count may be required for complex
system or multiple zones. ·FPLR/CL2R/CMR Rated
NEC Article 760(Fire Alarm Systems) Available Put-ups
Applies to the installation of wiring & equioment of the fire alarm systems including all circuits ·1000Ft Reel or Box
controlled and powered by the fire alarm system.
·500Ft Reel or Box

www.winlong-tech.com
