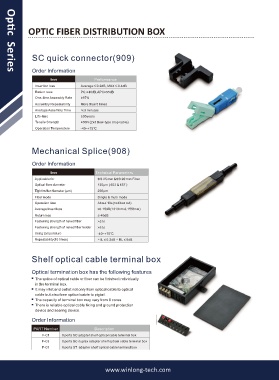

OPTIC FIBER DISTRIBUTION BOX

SC quick connector(909)

Order Information
Optic Series
Item Performance
Insertion loss Average≤0.2dB, MAX≤0.4dB
Return ross PC:≥40dB,APC≥55dB
One-time Assembly Rate ≥97%
Assembly Repeatability More than 5 times
Average Assembly Time ≤3 minutes
Life-time ≥30years
Tensile Strength ≥30N (2x3 Bow-type drop cable)
Operation Temperature -40~+75℃

Mechanical Splice(908)

Order Information
Item Technical Parameters
Applicable for Φ0.25 mm &Φ0.90 mm Fiber
Optical fiber diameter 125μm ( 652 & 657 )
Tight buffer diameter (μm) 250μm
Fiber mode Single & multi mode
Operation time About 10s(no fiber cut)
Average Insert loss ≤0.15dB(1310nm & 1550nm)
Return loss ≤-40dB
Fastening strength of naked fiber >5 N
Fastening strength of naked fiber holder >8 N
Using temperature -40~+75℃
Repeatability(10 times) △ IL ≤ 0.2dB △ RL ≤ 5dB

Shelf optical cable terminal box

Optical termination box has the following features
The splice of optical cable or fiber can be finished individually
in the terminal box.
It may inlet and outlet not only from optical cable to optical
cable but also form optical cable to pigtail.
The capacity of terminal box may vary from 8 cores.
There is reliable optical cable fixing and ground protection
device and sealing device.
Order Information

PART Number Description
F-C1 8 ports SC adapter shelf optical cable terminal box
F-C2 8 ports SC duplex adapter shelf optical cable terminal box
F-C3 8 ports ST adapter shelf optical cable terminal box
