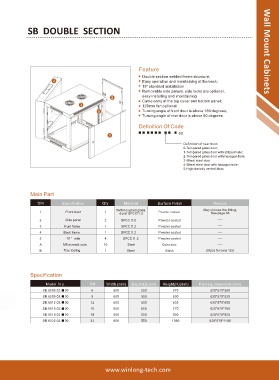

Page 11 - Wall Mount Cabinets

SB DOUBLE SECTION

Feature Wall Mount Cabinets
Double section welded frame structure;
Easy operation and maintaining at the back;
19” standard installation�
Removable side panels, side locks are optional,
easy installing and maintaining�
Cable entry at the top cover and bottom panel;
120mm fan optional�
Turning angle of front door is above 180 degrees;
Turning angle of rear door is above 90 degrees.

Definition Of Code
00

Definition of rear door:
0-Tempered glass door;
1-Tempered glass door with striped hole;
2-Tempered glass door with hexagon hole;
3-Sheet steel door
4-Sheet steel door with hexagon hole;
5-High-density vented door;

Main Part
S/N Specification Qty Material Surface Finish Remark
5MM toughed glass May choose the fitting,
1 Front door 1 door/ SPCCt1.2 Powder coated See page 86
2 Side panel 2 SPCC t1.0 Powder coated ----
3 Front frame 1 SPCC t1.2 Powder coated ----
4 Back frame 1 SPCC t1.2 Powder coated ----
5 19 '' rails 4 SPCC t1.2 Powder coated ----
A M6 screw& nuts 10 Steel Color zinc ----
B Trox tooling 1 Steel Black 20pcs for over 12U

Specification

Model N o. RU Width (mm) Depth(D)(mm) Height(H)(mm) Packing dimension (mm)
SB.6506.02.■00 6 600 550 370 620*570*390
SB.6509.02.■00 9 600 550 500 620*570*520
SB.6512.02.■00 12 600 550 635 620*570*650
SB.6515.02.■00 15 600 550 770 620*570*790
SB.6518.02.■00 18 600 550 900 620*570*920
SB.6522.02.■00 22 600 550 1080 620*570*1100
