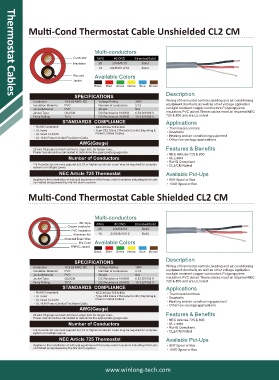

Page 2 - Thermostat Cables

Multi-Cond Thermostat Cable Unshielded CL2 CM

Multi-conductors
Conductor AWG #COND Stranded/Solid
Insulation 20 2/4/6/8/10 Solid
18 2/4/6/8/10/12 Solid
Rip cord Available Colors
Jacket
Black Red Green Yellow Blue Brown

SPECIFICATIONS Description
Thermostat Cables
Conductor 18 & 20 AWG BC Voltage Rating 300V Wiring of thermostat controls,heating and air conditioning
Insulation Material PVC Number of conductors 2-12 equipment doorbells,as well as other voltage appliation
Jacket Material PVC Shield N/A sunlight resistent copper conductors.Polypropylene
Jacket Type CL2/CM DC Resistance 18AWG 6.53 Ω/1000 ft insulation,PVC jacket.These cables meet all required NEC
Temp Rating 75°C DC Resistance 20AWG 10.3 Ω/1000 ft 725 & 800 and are UL listed
STANDARDS COMPLIANCE Applications
·RoHS Complianit ·NEC Article 725 & 800 ·Thermostat controls
·UL listed ·Type CL2 Class 2 Remote Control,Signaling & ·Doorbells
·UL listed CL2/CM Power Limited Cables ·Heating and air conditioning quipment
·UL 1424 Power Limited Fire Alarm Cable ·Other low voctage applications
AWG(Gauge)
20 and 18 gauge is most common.Larger size for longer runs... Features & Benefits
Power loss should be calculated to determine the appropriate gauge size. ·NEC Articles 725 & 800
Number of Conductors ·UL Listed
·RoHS Compliant
2 & 4 conductor are most popular.6,8,10 or higher conductor count may be required for complex ·CL2/CM Rated
system or multiple zones.
NEC Article 725 Thermostat Available Put-Ups
Applies to the installation of wiring & equioment of the temp control systems including all circuits ·500’ Spool or Box
controlled and powered by the fire alarm system. ·1000’ Spool or Box

Multi-Cond Thermostat Cable Shielded CL2 CM

Multi-conductors
PE Tape AWG #COND Stranded/Solid
Copper conductor
PVC Insulation 20 2/4/6/8/10 Solid
Aluminum foil 18 2/4/6/8/10/12 Solid
Stranded Drain Wire
Rip Cord Available Colors
FRPVC Jacket
Black Red Green Yellow Blue Brown
Description
SPECIFICATIONS
Conductor 18 & 20 AWG BC Voltage Rating 150V Wiring of thermostat controls,heating and air conditioning
Insulation Material PVC Number of conductors 2-12 equipment doorbells,as well as other voltage appliation
Jacket Material PVC Shield N/A sunlight resistent copper conductors.Polypropylene
Jacket Type CL2/CM DC Resistance 18AWG 6.53 Ω/1000 ft insulation,PVC jacket.These cables meet all required NEC
Temp Rating 75°C DC Resistance 20AWG 10.3 Ω/1000 ft 725 & 800 and are UL listed
STANDARDS COMPLIANCE Applications
·RoHS Complianit ·NEC Article 725 & 800 ·Thermostat controls
·UL listed ·Type CL2 Class 2 Remote Control,Signaling & ·Doorbells
·UL listed CL2/CM Power Limited Cables ·Heating and air conditioning quipment
·UL 1424 Power Limited Fire Alarm Cable ·Other low voctage applications
AWG(Gauge)
20 and 18 gauge is most common.Larger size for longer runs... Features & Benefits
Power loss should be calculated to determine the appropriate gauge size. ·NEC Articles 725 & 800
Number of Conductors ·UL Listed
·RoHS Compliant
2 & 4 conductor are most popular.6,8,10 or higher conductor count may be required for complex ·CL2/CM Rated
system or multiple zones.
NEC Article 725 Thermostat Available Put-Ups
Applies to the installation of wiring & equioment of the temp control systems including all circuits ·500’ Spool or Box
controlled and powered by the fire alarm system.
·1000’ Spool or Box

www.winlong-tech.com
