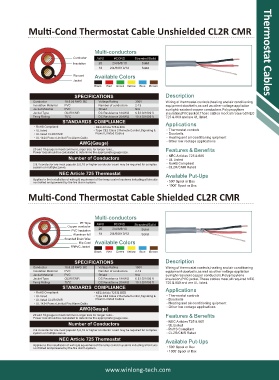

Page 3 - Thermostat Cables

Multi-Cond Thermostat Cable Unshielded CL2R CMR

Multi-conductors Thermostat Cables
Conductor AWG #COND Stranded/Solid
Insulation 20 2/4/6/8/10 Solid
18 2/4/6/8/10/12 Solid
Rip cord Available Colors
Jacket
Black Red Green Yellow Blue Brown

SPECIFICATIONS Description
Conductor 18 & 20 AWG BC Voltage Rating 300V Wiring of thermostat controls,heating and air conditioning
Insulation Material PVC Number of conductors 2-12 equipment doorbells,as well as other voltage appliation
Jacket Material PVC Shield N/A sunlight resistent copper conductors.Polypropylene
Jacket Type CL2R/CMR DC Resistance 18AWG 6.53 Ω/1000 ft insulation,PVC jacket.These cables meet all required NEC
Temp Rating 75°C DC Resistance 20AWG 10.3 Ω/1000 ft 725 & 800 and are UL listed
STANDARDS COMPLIANCE
·RoHS Complianit ·NEC Article 725 & 800 Applications
·UL listed ·Type CL2 Class 2 Remote Control,Signaling & ·Thermostat controls
·UL listed CL2R/CMR Power Limited Cables ·Doorbells
·UL 1424 Power Limited Fire Alarm Cable ·Heating and air conditioning quipment
AWG(Gauge) ·Other low voctage applications
20 and 18 gauge is most common.Larger size for longer runs... Features & Benefits
Power loss should be calculated to determine the appropriate gauge size.
Number of Conductors ·NEC Articles 725 & 800
·UL Listed
2 & 4 conductor are most popular.6,8,10 or higher conductor count may be required for complex ·RoHS Compliant
system or multiple zones. ·CL2R/CMR Rated
NEC Article 725 Thermostat Available Put-Ups
Applies to the installation of wiring & equioment of the temp control systems including all circuits
controlled and powered by the fire alarm system. ·500’ Spool or Box
·1000’ Spool or Box
Multi-Cond Thermostat Cable Shielded CL2R CMR

Multi-conductors
PE Tape AWG #COND
Copper conductor Stranded/Solid
PVC Insulation 20 2/4/6/8/10 Solid
Aluminum foil 18 2/4/6/8/10/12 Solid
Stranded Drain Wire
Rip Cord Available Colors
FRPVC Jacket
Black Red Green Yellow Blue Brown

SPECIFICATIONS Description
Conductor 18 & 20 AWG BC Voltage Rating 150V Wiring of thermostat controls,heating and air conditioning
Insulation Material PVC Number of conductors 2-12 equipment doorbells,as well as other voltage appliation
Jacket Material PVC Shield N/A sunlight resistent copper conductors.Polypropylene
Jacket Type CL2R/CMR DC Resistance 18AWG 6.53 Ω/1000 ft insulation,PVC jacket.These cables meet all required NEC
Temp Rating 75°C DC Resistance 20AWG 10.3 Ω/1000 ft 725 & 800 and are UL listed
STANDARDS COMPLIANCE
·RoHS Complianit ·NEC Article 725 & 800 Applications
·UL listed ·Type CL2 Class 2 Remote Control,Signaling & ·Thermostat controls
·UL listed CL2R/CMR Power Limited Cables ·Doorbells
·UL 1424 Power Limited Fire Alarm Cable ·Heating and air conditioning quipment
AWG(Gauge) ·Other low voctage applications
20 and 18 gauge is most common.Larger size for longer runs... Features & Benefits
Power loss should be calculated to determine the appropriate gauge size.
Number of Conductors ·NEC Articles 725 & 800
·UL Listed
2 & 4 conductor are most popular.6,8,10 or higher conductor count may be required for complex ·RoHS Compliant
system or multiple zones. ·CL2R/CMR Rated
NEC Article 725 Thermostat Available Put-Ups
Applies to the installation of wiring & equioment of the temp control systems including all circuits
controlled and powered by the fire alarm system. ·500’ Spool or Box
·1000’ Spool or Box
